● Height: 23.0±1mm ● Finish: CP/ED

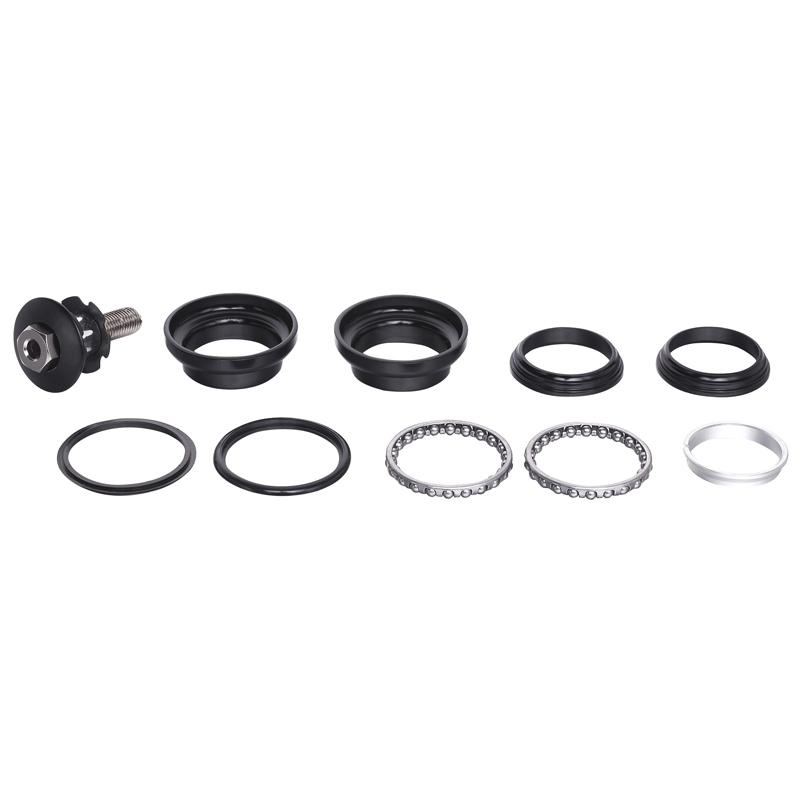

| NO | PART NAME | MATERIAL | SPECIFICATION | Q'TY |
| 1 | Start Nut | Alloy 6061 | 1-1/8''/M10 | 1 |
| 2 | Compress Ring | Nylon | 1-1/8' | 1 |
| 3 | Top Cone | Carbon Steel | － | 1 |
| 4 | Seal Ring | Nylon | － | 2 |
| 5 | Ball Retainer | Carbon Steel | 5/32'' X 22 | 2 |
| 6 | Cup | Carbon Steel | Ø34mm | 2 |
| 7 | Lower Cone | Carbon Steel | Ø30mm | 1 |
